📚 AUTOSAR

💼 What is AUTOSAR?

⬅️ Back

AUTOSAR stands for AUTomotive Open System ARchitecture.
It’s a worldwide development partnership of vehicle manufacturers, suppliers, and tool developers established to create and implement an open and standardized software architecture for automotive ECUs (Electronic Control Units).

🗓️ When was AUTOSAR introduced?

  • Founded in 2003
  • Major industry adoption started around 2006–2009
  • Continues evolving with versions like Classic Platform and Adaptive Platform

🌍 Where is AUTOSAR used?

AUTOSAR is used across: - Passenger cars - Commercial vehicles - EV platforms - ADAS (Advanced Driver Assistance Systems) - Powertrain, Chassis, Body, and Infotainment systems

Anywhere you have ECUs with safety, scalability, and reusability requirements, AUTOSAR is likely in the background.

❓ Why do we use AUTOSAR?

Key reasons:

  • Standardization: Ensures interoperability across OEMs and suppliers
  • Reusability: Software components can be reused across projects and ECUs
  • Scalability: Supports small ECUs to high-performance compute units
  • Safety & Security: Built-in support for ISO 26262 (functional safety) and cybersecurity
  • Reduced development effort: Thanks to common interfaces and tools

⚙️ How do we use AUTOSAR?

AUTOSAR development typically follows this flow:

  1. System Design: Define software components, their interfaces, and communication
  2. Software Component Development: Using tools like MATLAB/Simulink or hand-coding in C
  3. Configuration: Configure Basic Software (BSW), RTE (Run-Time Environment), and MCAL using AUTOSAR tools (e.g., DaVinci Developer, EB tresos)
  4. Integration: Components and configurations are integrated into the ECU
  5. Testing & Validation: Using HIL/SIL setups, test tools, and compliance checks

AUTOSAR is implemented via: - AUTOSAR Classic Platform (CP): For deeply embedded systems (e.g., body controllers, engine ECUs) - AUTOSAR Adaptive Platform (AP): For high-performance computing (e.g., autonomous driving, infotainment)

✅ Benefits of AUTOSAR

Benefit Description
🔁 Reusability Develop once, reuse across platforms and projects
🌐 Interoperability Standardized interfaces promote multi-vendor integration
🔒 Safety & Security Compliant with ISO 26262 and cybersecurity standards
⚡ Scalability Supports both small ECUs and powerful domain controllers
🧩 Modularity Separates application software from hardware and infrastructure software
🚀 Faster Development Reduces integration and testing efforts

Absolutely! Let’s start with a structured explanation of the AUTOSAR Architecture Layers, followed by interview questions and answers that are commonly asked.

💡 AUTOSAR Architecture – Layers Overview

AUTOSAR (Classic Platform) is designed in a layered architecture to separate concerns and standardize interaction between application software and hardware.

Here are the main layers:

1. Application Layer

  • What it is: Contains all Application Software Components (SWCs).
  • Function: Each SWC performs specific functions like controlling lights, wipers, or airbags.
  • Independence: SWCs are hardware-independent and communicate via ports and interfaces.
  • Example: A LightControl SWC sends signal to the Body Control Module.

2. Run-Time Environment (RTE)

  • What it is: Acts as a middleware between Application Layer and Basic Software (BSW).
  • Function: Maps data and service communication between SWCs and BSW modules.
  • Generated by tools based on software architecture.
  • Think of it as: A router that connects components.

3. Basic Software (BSW)

This is the backbone of AUTOSAR and has 3 sub-layers:

a. Service Layer

  • Provides system services like:
  • Memory management
  • Diagnostic services
  • OS abstraction
  • Communication services

b. ECU Abstraction Layer

  • Makes higher layers independent of the ECU hardware.
  • Provides uniform APIs to access internal/external peripherals.

c. Microcontroller Abstraction Layer (MCAL)

  • The lowest software layer.
  • Directly interfaces with microcontroller hardware (ADC, GPIO, SPI, etc.).
  • Provides standardized APIs for upper layers.

4. Microcontroller Layer

  • The actual hardware of the ECU.
  • Contains CPU, memory, timers, peripherals, etc.

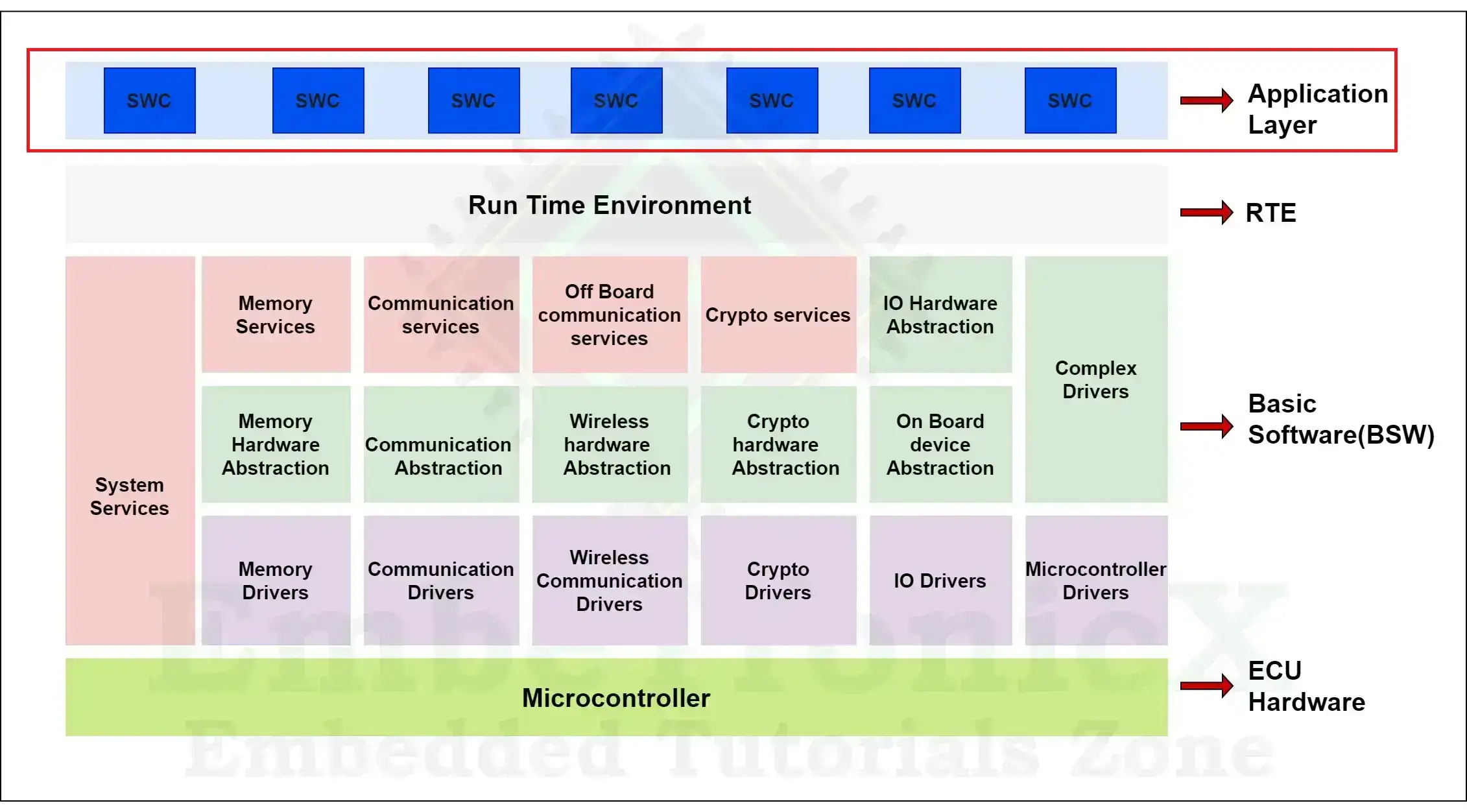

🧠 AUTOSAR Architecture – Summary Diagram

+---------------------------+
|     Application Layer     |  <-- Software Components
+---------------------------+
|           RTE             |  <-- Middleware
+---------------------------+
|        Basic Software     |
|  +---------------------+  |
|  |     Service Layer   |  |
|  +---------------------+  |
|  | ECU Abstraction Lyr|  |
|  +---------------------+  |
|  |       MCAL          |  |
+---------------------------+
|   Microcontroller Layer   |  <-- Hardware
+---------------------------+

alt text

📋 AUTOSAR Interview Questions & Answers

1. What is AUTOSAR?
AUTOSAR (AUTomotive Open System ARchitecture) is a standardized software architecture developed to improve modularity, scalability, and reusability in automotive ECUs.

2. Why do we use AUTOSAR?
To standardize software development, reduce development cost and effort, support scalability across vehicle lines, and facilitate software reuse across projects and OEMs.

3. When was AUTOSAR developed?
Initiated in 2003 by BMW, Bosch, Continental, Daimler, Siemens VDO, and VW, aiming for open and standard architecture for automotive ECUs.

4. Where is AUTOSAR used?
Across all automotive domains—body electronics, powertrain, chassis, infotainment—anywhere ECUs require structured, reliable software.

5. How is AUTOSAR used?
Through layered architecture: application layer (SWCs), RTE, and BSW. Tools configure components and generate code for integration on hardware.

6. What are the main layers in AUTOSAR architecture?
- Application Layer
- RTE (Run-Time Environment)
- Basic Software (BSW)
- Microcontroller Abstraction (MCAL)
- ECU Hardware

7. What is the Application Layer in AUTOSAR?
It contains Software Components (SWCs) implementing specific functionalities like wiper control, lighting, etc.

8. What is the RTE in AUTOSAR?
The RTE acts as middleware that facilitates communication between SWCs and between SWCs and BSW without knowing their implementation.

9. What is BSW in AUTOSAR?
Basic Software includes modules for communication, memory, diagnostics, and ECU abstraction—everything below RTE down to the microcontroller.

10. What are BSW layers?
- Services Layer
- ECU Abstraction Layer
- MCAL (Microcontroller Abstraction Layer)

11. What is MCAL?
It abstracts the microcontroller hardware so that software can be reused regardless of hardware changes.

12. What is ECU Abstraction Layer?
It hides hardware differences and provides uniform access to peripherals like ADC, EEPROM, PWM, etc.

13. What is the Services Layer?
It provides system services such as diagnostics (DEM, DCM), communication, memory (NvM), and mode management.

14. What is a Software Component (SWC)?
A reusable unit of software containing business logic. It uses well-defined interfaces and can be deployed on different ECUs.

15. What is an AUTOSAR Interface?
It defines how components communicate—either Sender-Receiver (S-R) or Client-Server (C-S).

16. What is Sender-Receiver Communication?
One component sends data; the other receives it. It's used for unidirectional signal flow.

17. What is Client-Server Communication?
Client requests a service; server responds. It's synchronous or asynchronous.

18. What is the role of RTE in communication?
RTE routes data between SWCs or between SWCs and BSW, ensuring separation and abstraction.

19. How are SWCs mapped to ECUs?
Using system configuration tools, SWCs are allocated to ECUs, which then communicate through generated RTE and BSW.

20. What is a Port in AUTOSAR?
A logical interface used by SWCs to connect to other SWCs or to services via RTE.

21. What is a Runnable in AUTOSAR?
A piece of code within an SWC that gets triggered based on events like timing or data reception.

22. What is the role of Basic Software Mode Manager (BSWM)?
It handles mode switching between different ECU states like startup, shutdown, or diagnostic mode.

23. What is DEM (Diagnostic Event Manager)?
Manages diagnostic events, statuses, and DTCs (Diagnostic Trouble Codes).

24. What is DCM (Diagnostic Communication Manager)?
Handles diagnostic communication with external tools (e.g., via UDS services).

25. What is NvM (Non-Volatile Memory Manager)?
Manages data storage and retrieval from non-volatile memory like EEPROM or Flash.

26. What is COM module?
It handles signal-level communication between SWCs and the communication stack (CAN, LIN, etc.).

27. What is the PDU Router?
Routes Protocol Data Units between modules like COM, CAN Interface, and Transport Protocol layers.

28. What is CAN Interface (CANIf)?
An abstraction layer between CAN driver and upper layers, responsible for buffering and interrupt handling.

29. What is CAN Driver?
Lowest-level module that interfaces directly with the CAN controller hardware.

30. What is E2E Protection?
End-to-End protection adds CRC, counter, and timestamp to ensure data integrity across network transmission.

31. What is a PDU?
Protocol Data Unit. It’s a unit of data exchanged between layers of the communication stack.

32. What is configuration in AUTOSAR?
Setting up parameters (ports, interfaces, memory, modes) using tools to generate required code and XML files.

33. What are ARXML files?
AUTOSAR XML files that store configuration and architecture definitions like SWCs, interfaces, and ECUs.

34. What tools are used in AUTOSAR development?
Examples: Vector DaVinci Developer, Elektrobit Tresos, ETAS ISOLAR, Mentor Volcano.

35. What is meant by “AUTOSAR Classic”?
The traditional AUTOSAR platform for deeply embedded systems (ECUs with limited resources).

36. What is “AUTOSAR Adaptive”?
A newer platform for high-performance ECUs, supports POSIX, service-oriented communication, dynamic reconfiguration.

37. What is Mode Management in AUTOSAR?
Manages operating modes like Normal, Sleep, Diagnostic using BSWM, Mode Manager, and RTE mode ports.

38. What is Memory Stack in AUTOSAR?
Includes modules like NvM, EA (EEPROM abstraction), FEE (Flash EEPROM Emulation), and MEMIF.

39. What is Watchdog Manager (WDGM)?
Monitors system tasks and detects software failure or system hangs. Can reset ECU if needed.

40. What is Safety in AUTOSAR (ASIL)?
AUTOSAR supports ISO 26262 safety standards. ASIL defines the risk level of a function from A (low) to D (high).

41. What is the role of OS in AUTOSAR?
The AUTOSAR OS manages task scheduling, events, alarms, and resources for SWCs and BSW.

42. What is an OSEK OS?
AUTOSAR Classic OS is based on the OSEK/VDX standard—used for task management in automotive ECUs.

43. What is the difference between IOC and RTE communication?
IOC (Inter-OS Application Communication) is for real-time task-to-task communication; RTE handles SWC communication.

44. What is VFB in AUTOSAR?
Virtual Function Bus is a conceptual layer where all SWCs interact via RTE as if they’re on the same ECU.

45. What are the benefits of AUTOSAR?
- Software reuse
- Scalability
- Standardization
- Reduced integration effort
- OEM-supplier decoupling

46. What is Post-Build Configuration?
Configuration done after compilation, allowing flexible updates without changing the application binary.

47. What is the difference between Pre-Compile, Link-Time, and Post-Build Configuration?
- Pre-Compile: Fixed at compile time
- Link-Time: Changeable before linking
- Post-Build: Changeable at runtime/configuration tools

48. What is a Complex Device Driver (CDD)?
Custom, non-standard driver used when no AUTOSAR standard module exists for a device.

49. What is Integration Testing in AUTOSAR?
Testing the integrated BSW, RTE, and SWCs together to validate communication and behavior across modules.

50. What are some common AUTOSAR interview topics?
- Communication stacks (CAN, LIN)
- Diagnostic stack (DEM, DCM)
- MCAL and abstraction layers
- RTE and SWC development
- Configuration flow and tools
- Software integration and safety
